Large Format CO2 Laser Marker
Large Format CO2 Laser Marker

Large Format CO2 Laser Marker

This large format co2 laser marker is equipped with world top brand Luxinar 250w co2 RF metal laser tube, the laser beam quality and laser output stability is well guaranteed. Moreover, it is also adopting the CKLASER large scale 3D dynamic focusing galvo head, which has enabled...
Send Inquiry
Machine Introduction



A large-format CO2 laser marker is an industrial automation device that utilizes a CO2 laser beam to achieve wide-range, high-precision pattern etching and marking on the surfaces of non-metallic materials.














Machine Parameters



Model Number

CKLEG250H

Laser Source

ROFIN 250W LASER TUBE

Wave Length

10.6μm

Pulse Repetition Frequency

1~1000khz

Galvo Head

CK 3D DYNAMIC FOCUSING GALVANOMETER HEAD

Control Card

STABLE AND DURABLE PCIE CONTROL CARD

Control Software

CK 3DLASER CONTROL SOFTWARE

File Format Supported

Bitmap Formats：*.png;*.jpg;*.jpeg;*.gif;*,tif;*. tiff;bmp;*.ico:*.emf;*.wmf

Vector Graph Formats: *.plt,*.dwg,*.dxf,*.svg*.eps,*.ai

Rated Power

7.0KW

Power Supply

220V Single Phase

Water Chiller

CW6000

Centrifugal Blower

2*750w

Maximum Marking Speed

10000mm/s

Cooling System

inside cavity water cooling

Marking Mode

3D dynamic focus

Working Range

400*400/500*500/600*600/750*750/1200*1200mm

Minimum Line Width

0.2mm

Environment Requirement

working temperature 15-35℃

humidity 20%-80%

storage temperature -20-50℃

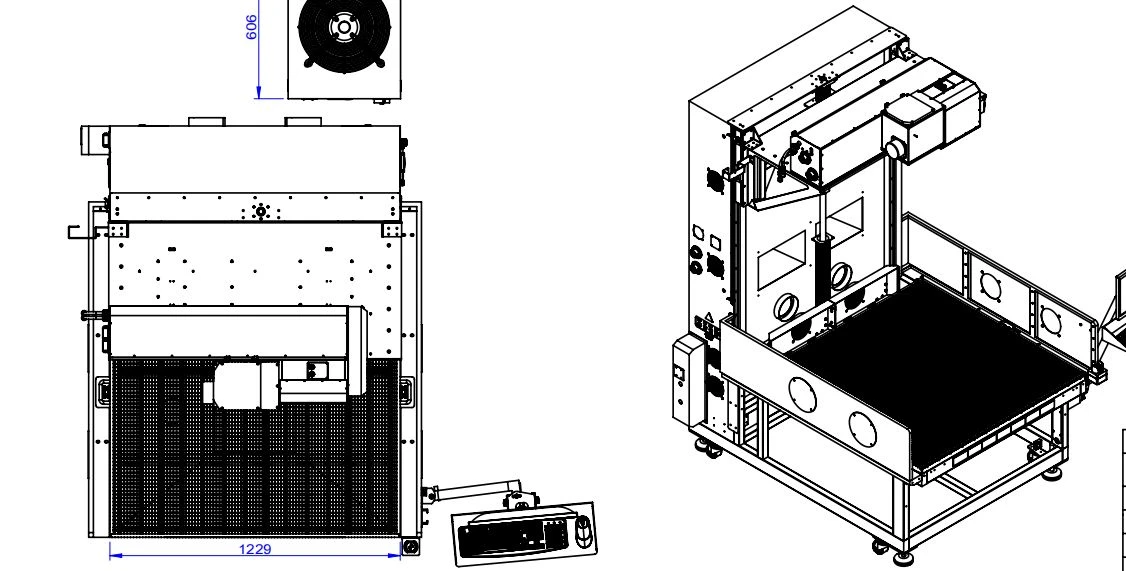

Machine Size

1230*1740*2464mm

Common Configuration

Motorized lift

Optional Configuration

Automatic roll feeding system, CCD, PC included mouse and keyboard, safety goggle, foot switch and etc.



Machine Advantages



Ultra-Large Working Range: The maximum working range reaches 1200*1200mm, meeting the requirements for large-format marking and cutting.

High-Speed Scanning: Equipped with the CKLASER high-performance galvanometer motor system, the maximum scanning speed can reach 10000mm/s.

Easy Operation: Equipped with CKLASER 3D laser control software, it supports parameter saving and one-click repeat operations.

Easy Maintenance: Equipped with four wheels for easy movement. Most electrical connections use connectors, making them easy to replace.









Machine Applications



This large-format CO2 laser marking machine is suitable for garment accessory processing (such as heat transfers, reflective logos, and patch cutting), cardboard cutting, fabric trimming, leather and wood engraving, denim washing, etc.
